Devices

Manually add a network device

1. Click on the Devices tab.
2. Click on the Add icon.



3. Enter the appropriate IP address or hostname.
4. Enter the device serial number.


     If you don’t know a device’s serial number, you can find it by scanning the QR code on the left side of the Lyve Mobile Array handle.



   Do not confuse the QR code on the handle with the QR code on the back of Lyve Mobile Array, which is clearly marked PSID. The PSID is not the same as the serial number.

   If the serial number on the handle is unreadable or doesn’t work, use theClick Connect. Lyve Virtual Assistant icon to start a support session.
5. Click Connect.
6. After the device is found, click Confirm.

View device details

To view device details:

1. Click on the Devices tab.
2. Hover your cursor over a device card and click on the Inspect icon.



3. View device details. See below.

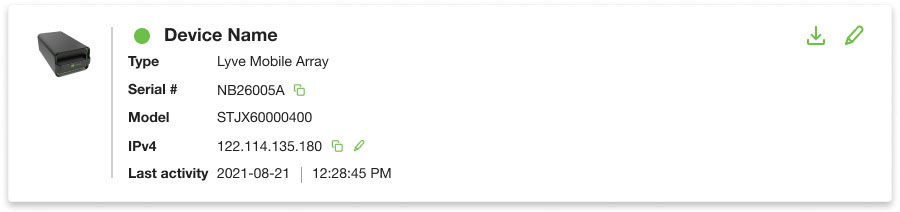

Device

	Click to download an activity log (used for troubleshooting issues).
	Click to rename device.

Device details	Notes
Device name
Type
Serial #		Click to copy serial number to clipboard.
Model
IPv4		Click to copy IP address to clipboard.
		Click to edit IP address.
Last activity	Date | Time

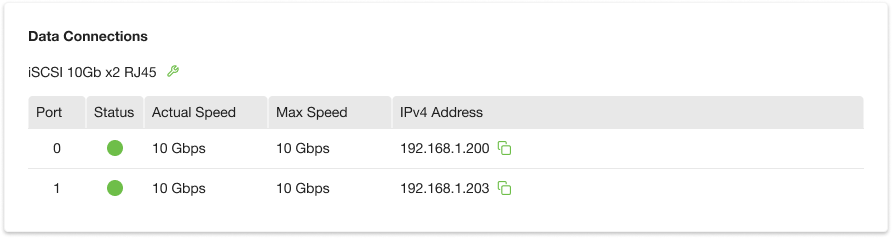

Data Connections

Click to edit iSCSI setup.

Data connection details	Notes
Port
Status		Good connection
		Degraded connection
		No connection
Actual Speed		Click to copy serial number to clipboard.
Max Speed
IPv4 Address		Click to copy IP address to clipboard.

Cryptographic Erase

Click to begin a cryptographic erase of data in the device. See Cryptographic Erase.

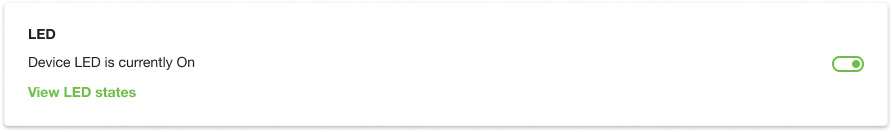

LED

	Turn LED on/off.
View LED states	View information on LED states.

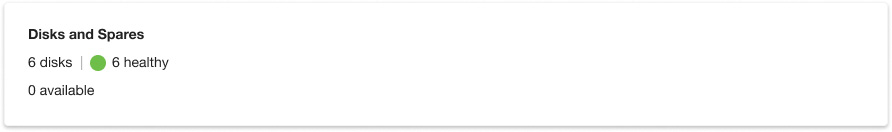

Disks and Spares

# disks	Disks in device
# healthy	Connected and healthy
# offline	Disconnected
# degraded	Connected but read/write degraded (for example, RAID initialization in progress or drive errors)
# fault	Connected but read/write severely diminished (for example, drive errors)
# available	Number of available disks for spares

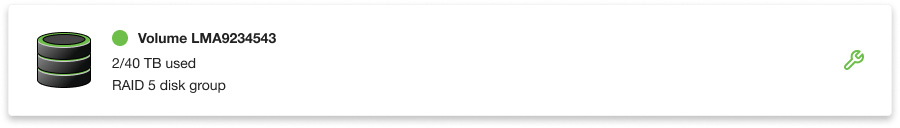

Disk Group

If the device is currently configured with a disk group (RAID array):

Change the disk group (RAID) configuration. See Configure Disk Group (RAID).

If no disk group (RAID) has been configured:

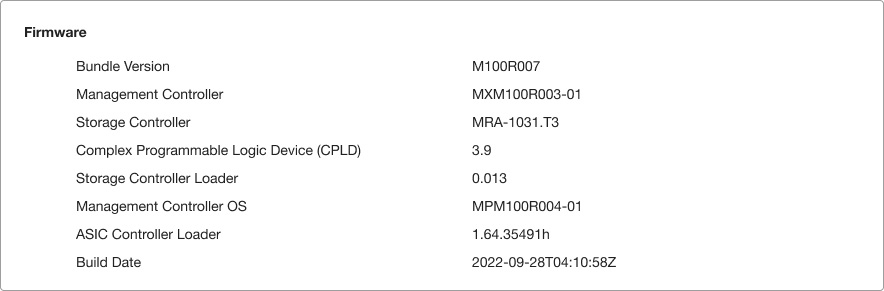

Firmware

Identify a device

Lyve Client can identify a connected Lyve Mobile device for you by having it temporarily flash its LED. This is useful if you have a large bank of connected Lyve Mobile devices and you need to identify a particular device. You can identify the device regardless of whether it is locked or unlocked.

1. Click on the Devices tab.
2. Hover your cursor over a connected device card and click the Identify icon.



3. Observe the front faces of your devices to spot the one with the flashing purple LED.
4. Click the Identify LED icon a second time to turn off the identification.

Rename a device

You can change the name of connected unlocked device.

1. Click on the Devices tab.
2. Hover your cursor over a connected device card and click the Edit icon.



3. Enter a new device name and click Rename.

Forget a device

If you no longer want a disconnected device to appear in Lyve Client, you can make the app ‘forget’ the device.

1. Click on the Devices tab.
2. Hover your cursor on a disconnected device card and click the Forget Device icon.



3. Click Forget Device to confirm.
